E Core Stacking Machine |
| |
|
The E Core Stacking Machine is designed for inserting a complete stack
of E-shaped cores into transformer coils efficiently and accurately.
|
|
|
Model |
PHT-172 |
|
For single size core plate with an adjustable thickness |
|
Bobbin mold |
One set |
|
Air pressure |
5 ~ 6 kg / cm2 |
|
Machine dimensions |
85(L) x 45(W) x 60(H) cm |
|
Weight |
45 kgs |
|
| |
|

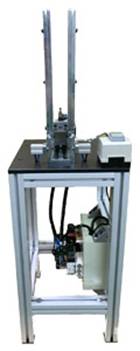

I Core Stacking Machine
The I Core Stacking Machine is designed to insert a complete stack
of I-shaped cores into transformer coils with speed and precision. |
|
|
Model |
PHT-173 |
|
For single size core
plate with an adjustable thickness |
|
Air pressure |
5 ~ 6 kg / cm2 |
|
Machine dimensions |
65(L) x 35(W) x 60(H) cm |
|
Weight |
35 kgs |
|
|
|
|

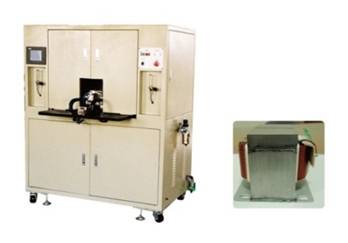

Single Core Argon Welding Fusion Machine |
|
|
The Single Core Argon Welding Fusion Machine is designed for fusing
transformer cores ranging from EI-35 to EI-66. The process involves
placing the product into the welding mold, inserting the left and
right core sections, pressing them together, welding the core, and
finally automatic ejection.
This machine supports all bobbin
structures and long lead models. It features a PLC and user-friendly
HMI control system, allowing direct adjustment of welding length and
speed. Operation is simple and intuitive. Water cooling is used to
reduce wear and extend component life.
For special
specifications, just provide samples of the core and bobbin—we can
quickly design a customized solution to meet your needs. |
 |
|
Model |
PHT-174A |
|
Welding track |
One left and one right |
|
Size range |
EI 35 ~ 66 |
|
Welding thickness |
Max 1 ~ 35 mm |
|
Mold type |
No need for mold ( Pin type side skeleton with retaining wall) |
|
Cooling type |
Closed water cooling |
|
Main welder |
DC TIG 300 Amp |
|
Capacity |
650 pcs / hour |
|
Material feeding conveyor |
Size : 80 x 200 mm Motor : AC 25 W |
|
Material out conveyor |
Size : 80 x 200 mm Motor : AC 25 W |
|
Machine dimensions |
L 120 X W 78 x H 165 cm |
|
Weight |
420 kgs |
|
|
 Single
Core
Argon Welding Fusion Machine |
 |
