Sole
trimming machine This machine is used for trimming the spew off of rubber, PVC, PU soles, boots, etc. | | ¡@ ¡@
 |
| ¡@ ¡@ |
|
Model |
PHT - 7 |
|
Motor |
1/4 HP |
|
Capacity |
2000 pairs |
|
Mc size |
L 900 x W 650 x H 1100 mm |
|
Machine weight |
56 kgs |
|
This machine is used for trimming the lining of woman footwear after lasting operation. | ¡@
|
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ | ¡@ ¡@ ¡@ | Model | PHT - 17 | Motor | 1/4 HP | Capacity | 1500 pairs | Mc size | L 970 x W 530 x H 1100 mm | Machine weight | 55 kgs |
¡@ |
This machine is used for trimming the spew to half edge of bircolour soles in rubber, PVC, PU and handle of briefcase, bag, etc. | | ¡@
| ¡@
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ | Model | PHT - 37 | Motor | 1/4 HP | Capacity | 1200 pairs | Mc size | L 970 x W 530 x H 1100 mm | Machine weight | 55 kgs |
| |
| | ¡@ | | This trimming machine is designed for trimming the spew to half edge of rubber, PU, shoes, rubber parts, etc. | ¡@
|
| Model | PHT - 47 | Motor | 1/4 HP | Capacity | 1200 pairs | Mc size | L 900 x W 650 x H 1100 mm | Machine weight | 55 kgs |
| | ¡@ | | ¡@ | Rubber deflashing machine ¡@ | This machine is used for removing inherent from molded rubber products, zinc-die cast products, etc. It achieves this by taking advantage of the characteristic brittleness of rubber and zinc-alloy in low temperature environments which are generated by the infusion of liquid nitrogen ( LN )
|
¡@ ¡@
After process
¡@
| ¡@ |
| ¡@ ¡@ ¡@ Model | PHT - 100 | Barrel capacity | 100 liter | L - Ncoolant | Liquid nitrogen | Temp. control | Temp. -196 ¢XC | Motor | AC 1 HP ( Inverter ) | Speed | 0 ~ 60 RPM |
| | ¡@ |
| Rubber hose metallic joint cramp machine
| | This joint camp machine is used with various kinds of hoses such as hydraulic hoses, pneumatic hoses, fire hoses, plastic hoses, automobile freon tubes, pipes for mowers, FPR steel guide wires, etc. |  | ¡@
¡@ | Model | PHT - 033 | Clamp range | 1 1/4 ¡V 4¡¨ | Motor | AC 3 HP | Control system | Automatic | Machine size | L 76 x W 76 x H 130 cm | Net weight | 1100 kgs |
¡@ |

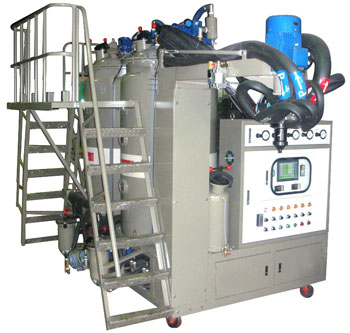

PU casting machine | This high temperature PU casting machine is designed for the production of PU roller, casters, piston cap, printing ball, etc.
its features included excellent performance, fully automated temperature control, a simplified operating process, labor savings and stable product quality.
¡@
¡@ | Model | PHT - 660 | Capacity | 3 ~ 6 kgs per min | Material tank | Moca tank 1 unit / capacity : 50 kgs, PU tank 1 unit / capacity : 500 kgs Material SUS # 304, 3 ply | Solvent tank | 1 unit / capacity : 20 kgs Material SUS # 304 | Metering pump | 1 unit / Moca capacity : 5g / turn, 1 unit / PU capacity : 39g / turn | Micro process temp. control | 0~200¢XC : 5 units | Inverter motor | 5 HP x1 pc, 2 HP x 2 pcs | Mixer motor | 1/2 HP with gear reducer 1/30 x 2 pcs | Heater 3 KW | 10 pcs | Timer setting | Auto or continuous 100 storage | | Micro computer control | PLC with touch screen 1 set | | High precision mixer head | Vertical type ( Double layout ) | | Piping heating | 1 set | | Vacuum pump | 4 HP x1 pc | Heater oil circle system | Room temperature ~ 200¢XC 1 set |
|
|
|
|
|
|
