Automatic Winding Machine For Multi Pole Stator Motor

This automatic winding machine is designed for efficient winding of multi-pole stator motors. After the operator places the stator into the fixture and presses the start switch, the fixture automatically rotates to the winding position. The machine completes the entire winding process automatically, with only loading and unloading done manually.

The structure uses an aluminum frame with an infrared safety cover and includes multiple servo motors to control winding, cable feeding, mold switching, lifting, and rotation. A brushless inverter motor drives the rotating disc for precise mold positioning.

The rotary mold design ensures high efficiency and stable quality. Models and parameters can be set directly via touchscreen, with storage for up to 100 models. Daily I/O testing and program editing are available from the control panel for easy maintenance and operation.





Model

PHT - 806 - 1A

Control method

CNC Controller

Wire diameter

0.5 mm ~ 1.5 mm

Stator diameter

30 ~ 120 mm

Stator thickness

Max 50 mm

Number of stator slots

2 ~ 30 slots

Speed

0 ~ 2000 RPM

Rotation direction

CW or CCW

Air pressure

5 kg/cm2

Power

AC 220V, 50HZ/60HZ  3 phase

Machine dimensions

1820(L) x 1000(W) x 1620(H) mm

Weight

800 kgs

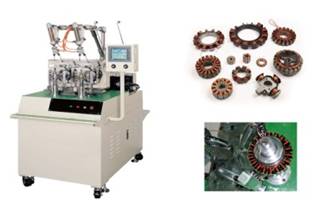

Automatic winding machine for multi pole stator motor

Double Shaft Multi Pole Stator Coil Automatic Winding Machine


This machine is designed for efficient and precise coil winding of multi-pole stators. It features a dual-shaft system with servo motors controlling key functions such as winding, cable feeding, pole switching, mold opening/closing, jig lifting, and mold rotation. The brushless inverter motor and electronic tension controller ensure stable performance and accurate winding results.

While winding is automated, loading and unloading are handled manually. A touchscreen interface allows easy parameter input and quick model switching, with memory storage for up to 100 model groups. The control panel includes I/O testing for daily checks, and the software supports parameter copying, model viewing, and program editing.



http://chm6168.com/updata/type-2/001.jpg



Model

PHT-806-2

Control method

CNC Controller

Wire diameter

Max 1.5 mm

Number of poles

1~30 pole

Volume

Max 50 mm

Stator thickness

Max 50 mm

Speed

Max 900 RPM

Power

AC 220V, 50/60HZ, 3 phases

Air pressure:

5 kg/cm2

Machine dimensions

98(W) x 173(D) x 165(H) cm

Weight

600 kgs

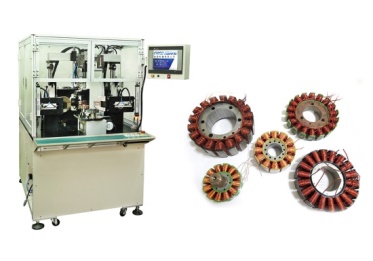

Double shaft multi pole stator coil automatic winding machine
