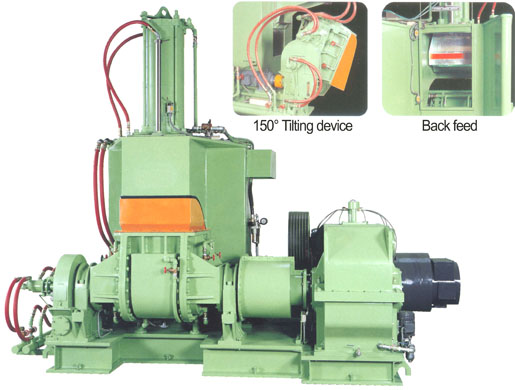

Dispersion Mixer - Heavy Type

¡@

PHT heavy-duty dispersion mixers are widely used in various industries for mixing a broad range of materials. Applications include rubber compounds, plastics, adhesives, master batches, pigments, inks, magnetic tapes, sealing materials, belt packing materials, electrical materials, gaskets, pharmaceuticals, foodstuffs, cork, magnetic rubber, ceramics, copy toners, dry-type BMC, and semiconductors.

¡@

Model

PHT - 35 K

PHT - 55 K

PHT - 75 K

PHT - 110 K

PHT - 150 K

Mixing capacity (L)

35

55

75

110

150

Gear box motor (HP)

75

100

150

200

300

Tilting motor (HP)

3

 5

7 1/2

 15

Air compressor (HP)

5

7 1/2

 ¡@

Exhaust fan (HP)

2

Material feed

Back

Control system

Automatic

Rotors revolution

30 / 25

Air pressure (kg/cm)

6 - 7

7 - 8

¡@

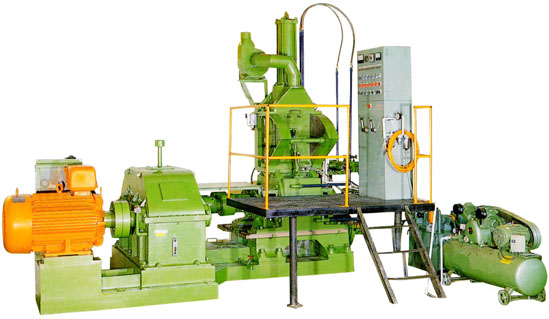

Intensive Mixer - Drop Type

¡@

PHT intensive mixers deliver high-efficiency mixing at the most economical speed. Suitable for natural rubber, synthetic rubber, resins, asphalt, cellulose, paints, enamels, and more. The mixing chamber can be water-cooled for rubber or steam-heated for plastics. Multiple models are available based on chamber size.

Model

HT - 35 D

PHT - 50 D

PHT - 75 D

PHT - 100 D

 PHT - 180 D

Mixing capacity (L)

35

55

75

110

180

Gear box motor (HP)

100

100

200

350

900

Air compressor (HP)

7 1/2

10

30

Exhaust fan (HP)

2

5

Material feed

Upper

Control system

Automatic

Rotors revolution

35 / 30

39 / 42

Air pressure (kg/cm)

6 - 7

7 - 8
Feeding door open & close

Air cylinder
¡@

Bucket Conveyor

¡@

The bucket conveyor is used to reduce manpower requirements and avoid the labor-intensive handling of hot and heavy rubber materials. Compact in design and easy to maintain, it is the ideal equipment for transporting heavy materials.

¡@

Model

PHT - 110L

Bucket

Made of stainless steel SUS304

Volume

Around 100 kgs

Frame

Made of steel plate welded

Driven system

By double chain gear

Motor

AC 2 HP

Machine size

L 3175 x W 1000 x H 1750 mm

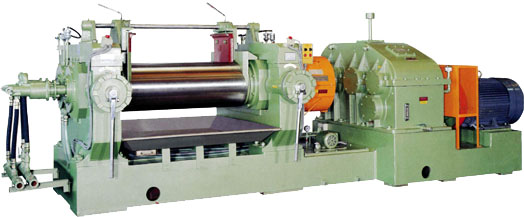

Mixing Mill

The mixing mill, also known as a sheeting or warming mill, is commonly used in the rubber and plastic industries. Its simple mechanical design allows for visual inspection during operation.

¡@

Item

Roll size

Motor ( HP )

Capacity /

Per batch ( kg )

Outline dimension ( mm )

L

W

H

1.

10¡¨£X x 26¡¨ L

15

3 - 5

3530

1085

1870

2.

12¡¨£X x 30¡¨ L

25

5 - 10

3750

1235

1945

3.

14¡¨£X x 36¡¨ L

40

10 - 15

4570

1450

2045

4.

16¡¨£X x 42¡¨ L

50

15 - 20

5050

1650

2100

5.

18¡¨£X x 48¡¨ L

75

20 - 35

5650

1820

2350
6.

22¡¨£X x 60¡¨ L

125

50 - 70

6590

2040

2465
7.

24¡¨£X x 72¡¨ L

175

60 - 90

7900

2450

1800

8.

26¡¨£X x 84¡¨ L

250

70 - 120

8300

2560

1870

¡@

¡@

¡@

¡@

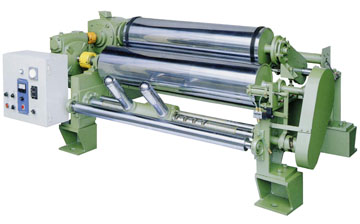

Rubber Stock Blender

The features of stock blender is uniform quality, good dispersion of chemicals, increased blending quantity and decreased blending time.

¡@



Item

Size

Motor
( HP )

Blender

roll dia.

Shift

Screw dia.

1.

14¡¨£X x 36¡¨ L

3

265 mm

75 mm

2.

16¡¨£X x 42¡¨ L

3.

18¡¨£X x 48¡¨ L

80 mm

4.

20¡¨£X x 54¡¨ L

5

90 mm

5.

22¡¨£X x 60¡¨ L

6.

24¡¨£X x 72¡¨ L

7 1/2

100 mm

¡@

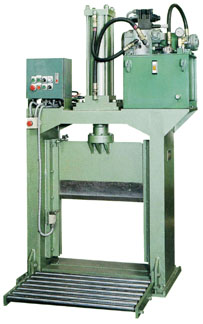

Crude Rubber Bale Cutter

The crude rubber bale cutter is designed for cutting natural and synthetic rubber blocks. It features a robust and safe design.

¡@



Model

PHT - 520

Cutting dimension

680 x 545 mm

Working pressure

70 kg / cm

Pump motor

3 HP

Cutting off force

5 tons

Roller conveyor length

1500 mm

¡@


¡@
