Scooter Tire Building Machine
| The tire building machine is used for scooter tire.
Model |
PHT - 0612 | Tire
size | S/C | Drum diameter |
6 ~ 12” | Control system | Automatic | Under stitcher motor | AC 1/2 HP | Main shaft motor | AC 3 HP ( Inverter ) | Drum revolution | 200 / 60 RPM |
Air supply |
10 - 12 kg / cm | Building speed | 40 sec / pcs ( 2 ply ) |
|

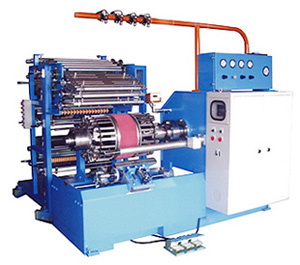

Motorcycle Tire Building Machine|
 | Model |
PHT - 1317 |
PHT - 1621 | Tire size | 13 ~ 17¡¨ | 16 ~ 21” | Cord fabric width | Max. 570 mm | Cord fabric roll dia | Max. 470 mm | Liner clothes width | Max. 670 mm | Liner clothes roll dia | Max.
280 mm | Main shaft motor |
AC 3 HP x
6 P ( Inverter ) | Under stitcher motor |
AC 1/2 HP x
4 P ( Inverter ) | Ply servicer motor | AC 1/2 HP |
Air supply |
8 ~
12 kg / cm | Building speed 8hrs |
420pcs 2 ply /
320pcs 4 ply |
|

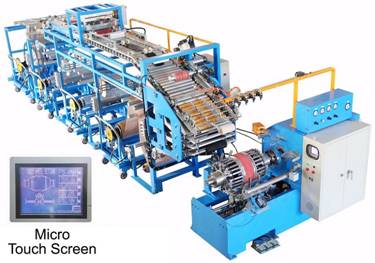

Motorcycle Tire Building Machine with Tread Roll
| Model |
PHT - 1521 | Tire size | 15 - 21” | Building tire width | 70 - 380 mm | Main shaft motor | AC 3 HP x 6 P ( Inverter ) | Under stitcher motor | AC 1/2 HP x 4 P ( Inverter ) | Control system | Micro touch screen | Servicer carriage | 4 ply | Tread length cutting | Hot cutter | Tread end pre-heater | 2 positions | Tread reel let-off stand roll | Max. 1.4 m | Tread conveyor width | Max. 400 mm | Ply roller dia | Max. Φ 1000 x 500 mm | Liner clothes width | Max. 600 mm | Building speed | 80 sec / pcs ( 2 ply ) |
|
¡@
|
