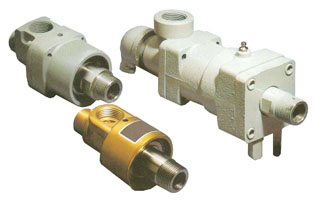

Rotary
Pressure Joints
|
¡@ |
|
These rotary pressure joints are installed between a stationary pipe and
rotating equipment, operating under air pressure or vacuum to transfer
liquid or vapor without leakage, and are widely used in rubber and plastic
machinery, steel and metal processing, printing, painting, and paper
industries. |
|
|
¡@
3 - Way Piston
Valves ( Rc Thread Type )
|
|
Fluid |
Steam,
oil, hot & cold Water, Nonflammable Gas |
|
Pressure |
Max. 3.2 Mpa ( 32 kgf / cm ) |
|
Temperature |
Max. 205 ¢XC |
|
Pirot pressure |
0.25~0.35 Mpa (2.5~3.5 kgf /cm) |
¡@
¡@
¡@
¡@
¡@
Model |
Rc | P3WR -RC1-10A |
3/8 | P3WR -RC1-15A |
1/2 | P3WR -RC1-20A |
3/4 | | P3WR -RC1-25A |
1 | P3WR -RC1-32A |
11/4 |
|
|
3 - Way
Piston Valves
( Reduce
Flow Type, RC Thread Type ) |
|
Fluid | Steam, Oil, Hot & Cold Water, Nonflammable
gas | Pressure | Max. 3.2 Mpa ( 32 kgf / cm) | Temperature | Max. 205 ¢XC | Pirot pressure | 0.25~0.35 Mpa (2.5~3.5 kgf /cm) |
¡@ Model | Port dia D | Screw Rc | Face to face L | P3WR -RF1-10A | 10 | 3/8 | 146 | P3WR -RF1-15A | 15 | 1/2 | 146 | P3WR -RF1-20A | 20 | 3/4 | 146 | | P3WR -RF1-25A | 25 | 1 | 167 | P3WR -RF1-32A | 32 | 1 1/4 | 190 |
|
¡@ 4 - Way
Piston Valves (
Single Action, RC Thread Type )
| Fluid | Cold Water | Pressure | Max. 3.0 Mpa ( 30 kgf / cm ) | Temperature | Max. 65 ¢XC | Pirot pressure | 0.25~0.35 Mpa (2.5~3.5 kgf /cm) |
Model | Rc | Weight | C4WS -8A | 1/4 | 2.4 kgs | C4WS -10A | 3/8 |
|
Diaphragm
Operated Control Valve
(
RC Thread and Flange Type )
| ¡@
|
Fluid |
Steam & Nonflammable
gas |
|
Pressure |
Max. 1.7 Mpa ( 17 kgf / cm) |
|
Temperature |
Max. 205 ¢XC |
|
Pirot pressure |
0.02 ~ 0.1Mpa (0.2~1.0 kgf / cm) |
¡@
¡@
¡@
¡@
Model |
Rc |
Weight |
DKV -RC-15A |
1/2 |
7.2 kgs |
DKV -RC-20A |
3/4 |
DKV -RC-25A |
1 |
|
Steam
Regulators (
Diaphragm Operated, RC Thread and Flange Type )
¡@
|
|
Fluid |
Steam & Nonflammable
gas |
|
Pressure |
Max. 1.3 Mpa ( 13 kgf / cm ) |
|
Temperature |
Max. 205 ¢XC |
¡@
¡@
¡@
¡@
|
Model |
Rc |
|
SRV/D -RC-20A |
3/4 |
|
SRV/D -RC-25A |
1 |
¡@
¡@
¡@ |
|
| ¡@ |

|
¡@
 |
