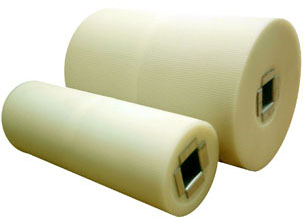

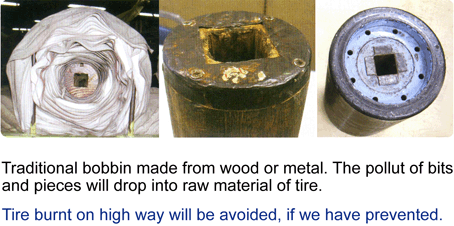

Bobbin for tire industries  | This nylon bobbin is used in tire manufacturing industries, etc.
|
 | ¡@ | ¡@ Item | PHT - 3535 | Diameter | 110 or 200 mm | Axle center | 35 x 35 mm | Apply to axle | 32 x 32 mm | Length | By order | Material | Nylon | Characters | Anti-crash, ripple for anti-slide and trifle less |
|
|
¡@ ¡@ |
|
Heat insulation plate | | This insulation plate is used in tire manufacturing industries on curing press, etc. |
| ¡@ |
Model | PHT - 2100 | PHT - 5505 | | Material | Asbestos | Silica fiber | | Insulation | 15 kV / mm | 50 kV / mm | Conductivity | 0.33 | 0.27 | Pressure | 1500 kg/cm | 2500 kg/cm | Hardness | 55 | 95 | | Gravity | 2 g/cm | 2 g/cm | | Humidity | 5 | 0.2 | | Heat proof | 450 ¢XC | 300 ¢XC | | Thickness | 6,10,13,16,20, 25,30,40,50 mm | 1/4¡¨, 3/8¡¨, 1/2¡¨, 1¡¨, 1 1/4¡¨ |
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ | PTFE coated conveyor belts |
| PTFE is well known for properties of low friction and easy of release. It has excellent resistance to chemicals, high dielectric strength, non-toxic, dimensionally stable, unaffected by temperature extremes and in combination with glass and Kevlar, remains tough and flexible throughout an operating temperature range of -150 ¢XC to 260 ¢XC. They are effective over a wide band of temperatures including cryogenic cooling and can be used safely with microwave, radio-frequency, ultra-violet and infra-red techniques. ¡@ |
|
| Type | Max width (m) | T. (mm) | Weight (g / m) | Resin content (%) | Breaking strength (kgf / cm) | Operating temp. (¢XC) max | Comments | Super smooth ¡¥AA¡¦ series | 108AA/04T 116AA/06T 128AA/10T | 1 2 2.4 | 0.100 0.150 0.250 | 178 310 534 | 75 66 62 | 10 20 38 | 260 | Release charac-teristics are critical and extra smooth. | Premium ¡¥A¡¦ series | 108A/03T 116A/05T 128A/10T | 1 2 2.4 | 0.075 0.125 0.250 | 148 254 483 | 67 58 58 | 10 21 38 | Suitable for most applications. | Budget ¡¥B¡¦ series | 108B/03T 116B/05T 128B/10T | 1.0 2.0 2.4 | 0.075 0.125 0.230 | 110 210 416 | 56 48 52 | 10 20 38 | For consideration when cost is a prime factor. | Anti-static ¡¥G¡¦ series | 108G/03T 116G/05T 128G/10T | 1 2 2.4 | 0.075 0.125 0.250 | 148 254 483 | 66 58 58 | 10 20 36 | Will reduce charges of static electricity to a minimum. |
PTFE products
| Tubes Thin tubes Heavy wall tubes Rods Moulded sheets Skived sheets Etched tapes Sheets. |
Recording chart paper
¡@ | Chart folded packs Chart rolls Circular chart sheets Printer & addition rolls Laboratory chart papers Thermo-print rolls CTG rolls CTG folded packs Special continuous papers. | Recording Ink . cartridges pen . Ink pen |
¡@ | Ink Cartridges Print Heads Print Wheels Ink Pads Ink Ribbons Plotter Pen Nibs & Tip Writing & Marking. |
|
