Model |
PHT - 806 - 1A |
|
Control method |
CNC Controller |
|
Appropriate winding path |
0.5 mm ~ 1.5 mm |
|
Stator diameter |
30 ~ 120 mm |
|
Stator thickness |
Max 50 mm |
|
Number of stator slots |
2 ~ 30 slots |
|
Speed |
0 ~ 2000 RPM |
|
Rotation direction |
CW or CCW |
|
Air pressure |
5 kg/cm2 |
|
Power |
AC 220V, 50HZ/60HZ 3 phase |
|
Machine dimensions |
1820(L) x 1000(W) x 1620(H) mm |
|
Weight |
800 kgs |
|
|
|
| |
|
|
|

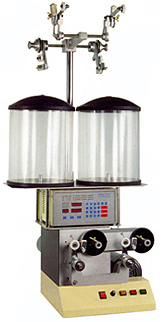

Model | M927G1A | M927G2A | Spindle | 1 | 2 | Wire size | 0.5 ~ 2.0 mm | Spread pitch | 0 ~ 9.999 mm | Coil width | Max. 100 mm | Coil diameter | Max. 160 mm | Revolving speed | 3000 RPM | Main motor | DC 1/2 HP | Spindle motor | 1.9 A / DC 5 V (stepping type) | Storage | For storage of 999 sequences | Power supply | AC 110 V / 220 V | Overall dimension | 58 x 55 x 50 cm | Machine weight | 45 kgs | 56 kgs |
|
| |
|

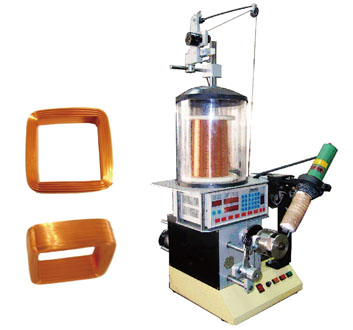

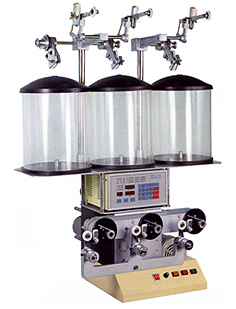

Self melted enameled wire winding
machine |
Model |
M927G2B |
No. of spindle |
1 |
Speed of spindle |
0 ~ 3000 RPM |
Line diameter |
Max. Φ 1.0 |
Coil outer diameter |
Max. Φ 100 |
Line width |
Max. 120 mm |
Motor |
1/2 HP DC |
Power supply |
110/220V, 50/60Hz |
Overall dimension |
L 70 x W 68 x H 120 cm |
Weight |
65 kgs |
|

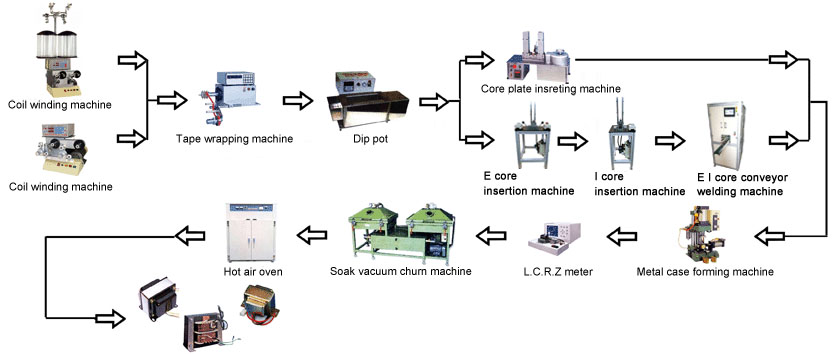

Transformer production flow chart
 |
